ALAT SMK 2018 - TEKNIK OTOTRONIK SMK - PERALATAN SMK TEKNIK OTOTRONIK

1.11.5 TEKNIK OTOTRONIK
No    Nama Peralatan    Merek     Type     Harga @
1    Automotive Scannner/Diagnostic Tool    GSCAN2    ASIANKIT     91.630.500
2    Gasoline Emission Analyzer    HESHBON    HG-520     87.019.500
3    Diesel Smokemeter    HESHBON    HD-410     136.702.500
4    Gasoline Fuel Injection Control System with Auto Fault    YES01    YESA-4240     425.667.000
5    Fuel Injection Control Board System    YES02    YESA-4236     579.184.500
6    Injector Cleaner Tester & Analyzer    GREENS    GBL-6A     47.898.000
7    Automotive Oscilloscope    JINHAN    JDS2022A     9.834.000
8    Automotive Engine Fault Diagnosis Simulator with auto fault    YES01    YESA-3102     508.135.500
ALAT SMK 2018, TEKNIK OTOTRONIK SMK , PERALATAN SMK TEKNIK OTOTRONIK,alat peraga smk 2018,jual alat smk 2018,produksi alat praktek smk,supplier alat praktek smk

9    Automotive Sensor Simulator    YES01    YESA-4331     508.135.500
10    Electrical Storage Oscilloscope    UNI-T    UTD2025CL     10.468.500
11    CRDI Engine Injection Control System with auto fault    YES01    YESA-4241     416.785.500
12    Commonrail Diesel Test Bench    KERNEL     CR3000-708A     416.500.500
13    Standar Mechanical Tool Set    SPERO    32-96-165     25.713.000
14    ABS Simulator with Fault Diagnosis with 4 axis    YES01    YESA-4920     828.495.000
15    Automotive Basic Electric Circuit Trainer    YES01    YESA-4460     28.548.000
16    Basic Lighting Electrical Circuit System Trainer    YES01    YESA-4410     129.412.500
17    Automotive Components Electric Circuit Training Equipment    YES01    YESA-4100     482.760.000
18    Interactive Automotive Electronic Learning with Universal Engineering Platform    YES01    YESA-7000     501.411.000
19    Digital Multimeter    UNI-T    UT-33A     634.500
20    DC Power Supply    UNI-T    UTP-1305     9.834.000
21    Motor Starter & Alternator Test Bench    YES01    YESA-4501     229.009.500
22    Combination Starter & Alternator Training System    YES01    YESA-4512     116.725.500
23    Heavy Duty Battery Charger    SHUGUANG    1800     15.859.500
24    DIS Ignition System Trainer    YES01    YESA-4233     105.942.000
25    Automotive Ignition Circuit Control System Trainer with Various Sensor    YES01    YESA-4231     264.535.500
26    Motronic System Simulator    YES01    YESA-4251     315.285.000
27    Immobilizer Ignition Control Simulator    YES01    YESA-4260     396.484.500
28    Instrument Control Panel System Trainer    YES01    YESA-4420     126.876.000
29    Automotive Air Conditioning System Simulator    YES01    YESA-4600     615.345.000
30    Automotive Advanced ECS/ABS/VDC Control System Simulator    YES01    YESA-4902     1.525.038.000
1.11.5 TEKNIK OTOTRONIK
No    Nama Peralatan    Rasio    Deskripsi    Merek    Type    Harga @

1    Automotive Scannner/Diagnostic Tool    2 unit/ruang praktik    "untuk mengetahui dan mendiagnosa kinerja engine secara menyeluruh baik pada engine dengan bahan bakar bensin maupun bahan bakar solar,yang sudah menggunakan control electronic (ECU),dan dapat menginformasikan bilamana terdapat kegagaan fungsi dari sensor-sensor yang ada
Features
- Triple CPU High Performance Structure   - Designed for fast boot-up and high performance by adopting    - 3 CPUs dedicated to computing, communication and measurement for each   - Wireless Connectivity   - can access to the internet and utilize smart update,    - quick feedback system, real-time PC interface, and direct printing
- Rechargeable Battery   - 2100mAh Li-ion battery supplies power t for more than an hour under full load condition    - without external source
- Diagnostic S/W Fully Compatible with the Scantool Unit
- 7” high resolution 1024 X 600 LCD ensures striking readability with striking graphical display of diagnostic data and information.   - 16 GB SD Card memory   - Win CE 6.0 Operating System
- Latest Windows CE 6.0 provides improved smart phone style user interface, better networking and enhanced system    - security at the same time   - Zero Second Boot-up
- Micro Controller Triple CPU Main control board ARM11 @ 600MHz
- Communication Board ARM9 @ 266MHz  - Measurement Board (Optional) ARM9 @ 266MHz  - System Memory Main Control Board NAND : Flash 128MB and SD RAM 256 MB  - Main Control Board NAND : Flash 32MB and SD RAM 8Mb   - Main Control Board NAND : Flash 32MB and SD RAM 8MB   - External Memory 16GB SD Card
- LCD 7” TFT LCD (1024 X 600 pixel)  - Input Devices Touch Screen  - Power, Enter and ESC Keys   - 4 way directional keys, F1 ~ F6 function keys   - Indication Lamps 3 Color LED
- Sound Suzzer and speaker  - Rechargeable Battery Li-lon Polymer 2100m Ah 1Cell
- Operating Voltage 7 ~ 35V DC (10~35V for charging)
- Housing Material PC + ABS resin with rubber shrouds
- Connectivity   - Category Specifications
- External COM port 1 X USB 2.0 standard (master) + 1 X mini USB (slave)
- WiFi Module On-board  - Blue Tooth On-board
- AC/DC Adapter   - Category Specifications
- Input Power Vehicle Batery or 100 ~ 240V AC  - Frequency 50 / 60 Hz
- Diagnostic Function   - System and DTC Auto Search
- Favorite and Recent   - Screen Capture and Memo   - Full Text Description
- Smart Update   - CAN Line Inspection
- Simple and easy menu structure   - Utility Functions
- Dual Mode for Hyundai and Kia   - Flight Record
- Basic Supplies   - Base Unit   - SD Card 16GB
- DLC Main Cable   - SD Card Reader
- Self Test Adapter
- Quick Manual
- PC Utility CD (S/W)
- Parts included in the Asian Vehicles
- TOYOTA 17+1P Square
- TOYOTA 17P Round
- HONDA/ACURA 3P
- MAZDA 17P
- SUBARU 9P
- MITSUBISHI 12P+16P
- Kia 20P-A type Connector
- Kia 20P-B type Connector
- Hyundai & Kia Keyless Connector
- NISSAN 14P
- Ssangyong 14P
- Ssangyong 20P
- Daewoo 12P   "    GSCAN2    ASIANKIT     91.630.500
2    Gasoline Emission Analyzer    1 unit/ruang praktik    "untuk menganalisa dan mengetahui hasil dari pembakaran pada engine bensin
Description
Advanced, lightweight, mobile 4 Gas Analyser kit including external Printer and PC Interface.
Measurement: NDIR(Non-Dispersive infrared) and electronic
- CO (Carbon Monoxide)- HC (Hydrocarbons)
- CO² (Carbon Dioxide)- O² (Oxygen)
- LAMBDA & AFR (Air/Fuel Ratio)
Technical Data
- CO measurement range : 0-9.999% with 0.01% res.
- HC measurement range : 0-9999 ppm with 1 ppm res.
- CO² measurement range : 0-20.0% with 0.01% res.
- O² measurement range : 0-25.00% with 0.01% res.
- LAMBDA range : 0-2.000% with 0.01% res.
- AFR range : 0-99.0 with 0.1 res.
- Ambient Temp. usage: 0℃ - 40℃
- Microprocessor control- Automatic zero and span adjustment
- Full digital display visible in any light- LED indicators for all functions
- Membrane switches- Serial PC Interface
- Fast response time and low drift- Automatic calibration
- Software supported gas calibrating procedure- Response time : 10sec. approx.
- Pre -heating time : 3-8min. approx.- Power supply : 110 / 220 / 240Vac 50/60Hz- External Dimension : approx. 285(W) × 410(D) × 155(H)mm
- - Net weight : approx.  10Kg
"    HESHBON    HG-520     87.019.500
3    Diesel Smokemeter    1 unit/ruang praktik    "untuk menganalisa dan mengetahui hasil dari pembakaran pada engine diesel
Features
Real-time smoke measurement(%, k [m-1])  ,Portable and LED display
Outstanding accuracy, stability and durability  ,Response time of 0.5 second
Smoke, SOF measurement  ,Easy to use with handheld terminal
Built-in printer  ,RS232C PC program  ,RPM/ Oil temp. meter
Auto-Zero/ Span calibration function
Specification
Measuring items Smoke opacity ( %, k [m-1] )
 RPM (option), °C (option)
Principle  Light extinction method (Partial-flow sampling type)
Light source   Green LED(565nm)
Shell length & Inside diam. Length: 215mm, Inside diameter: 21mm
Detector  Photo diode
Range  0.0~100.0% (0.00~21.42m-1 ) ,Accuracy  Less than 1%
Warm-up time    3~6 minutes ,Display time    4 times /sec
Power   220V / 110V AC  50/60Hz ,Temperature   -10~40℃ "    HESHBON    HD-410     136.702.500
4    Gasoline Fuel Injection Control System with Auto Fault    2 unit/ruang praktik    "untuk mempelajari kinerja sistem injeksi elektronik pada engine bensin dilengkapi dengan simulasi deteksi kegagalan sistem
Feature
The equipment allows to educate overall ignition systems such as composition
and operation principles of various types of ignition systems and injection system.
It allows to check the overall ignition system at a glance by attachment of parts,
power and wiring terminal on the panel.
Connection sockets are installed for each sensors, circuits and components
so that is able to help wiring practices and measure wave patterns.
By manipulating the controller, able to check the waveforms in accordance
with RPM speed.
Students are able to understand flow of entire circuit, find out what causes
fault and how to repair.
The panel composing the ignition circuit is made with aluminum CNC-treated panel.
Composition : Fuel Tank, Fuel Pump, pressure regulators, ECU, Injector, fan,
crank gear, cam gear, tester for fuel injection
 1) Ignition circuit : Coil, ignition plug, air intake
 2) Sensor : Temperature sensor, oxygen sensor, air flow sensor, air temperature sensor,
 an engine temperature sensor, exhaust gas sensor, crank sensor and a cam sensor,
 Power supply
Cabinet Type storage space with 2 door
Auto Fault Function
Size : Approx. 1,300 X 600 X 1,600 mm
Weight : Approx. 100 kg, key box
Training Contents
Measure the waveforms and check the changes according to RPM speed.
Engine operation : check the operation of the injector and sparks in the order of
 switch plugs (1, 3, 4, 2) and inspect whether normal operation of each sensor.
Flame intensity measurement by adjusting the ignition gap.

"    YES01    YESA-4240     425.667.000
5    Fuel Injection Control Board System    2 unit/ruang praktik    "untuk mempelajari kinerja sistem injeksi elektronik pada engine bensin dengan dilengkapi dengan 2 sistem yang berbeda (sistem fuel return  dan sistem fuel return less)sehingga siswa dapat langsung membandingkan antara kedua sistem tersebut

The simulator allows students to learn structure of fuel supply system, control of injection amount and types of injection.
Understanding the overall structure of the engine injection system.
Understanding how to control injection amount and adjust injection pressure according to changes of engine drive conditions.
 1) Injection System Module with Auto Fault
- Installment of 2 kinds of injection system (fuel return system, fuel return less system)
- Control of fuel pressure regulator and injecting place pressure changes
- Easy to measure output waveform and practice injection system wiring
- Able to check injection state and difference of injection types (independence Type, group Type, sequential Type)
- Able to measure and compare injection quantity (vol.) using mass cylinder
- Able to measure actual injection period of each injector. Throttle body is installed
- Electric mass for injection amount measurement (wt.)
- Injection duration display of each injector
- Hypothetic cooling water temperature display (for checking change of injection amount depending on cooling water temperature changes)
- injection number display during injection amount measurement (for calculating quantity of single injection)
 2) Drawer type storage space 3ea
Size : Approx. 2,400 X 600 X 2,100 mm
Weight : Approx. 350 kg
Training Contents
Understanding of principle and method of injection amount control and measuring amount of injected fuel.
Practice of injection system wiring and circuit inspection.
Understanding of Injector Dead Time.
Understanding changes of control value and output value of injection system, analyzing waveforms.
Understanding power supply of engine and control state according to ignition switch operation."    YES02    YESA-4236     579.184.500
6    Injector Cleaner Tester & Analyzer    1 unit/ruang praktik    "untuk mendiagnosa banyaknya,bentuk semprotan dari injektor bensin,sekaligus membersihkan dari endapan karbon
FEATURES:
1. LED display; 4 Cylinders2. Ultrasonic cleaning trough built-in
3.Equip with high quality SIEMENS pump, make it endurable;
4.It can test and clean at the same time.
FUNCTIONS:
1.Ultrasonic cleaning , dismantle the carbide of the injector;
2.injector test. stimulate engine running condition, test injector in different speed range,Check and test injector's injection situation: atomized /spraying angle/spraying mount/spraying uniformity;
3.leakage and block test;4.Uniquely designed various compound liquid for all kinds of side-inlet injectors;
5.With reverse flush function, to clean inside out, to improve clean efficiency;
SPECIFICATIONS:
Turning speed range: 0~7500r/min,Timing pulse length: 0~9900times/step length 100,Pulse length: 0-20ms step length 0.1ms
Timing: 0~10min,System pressure: 0~0.6Mpa
Ultrasonic cleaning power: 70W
Power supply: AC110V/220V±10% 50/60Hz
Working temperature: 10°C~40°C
Stimulant signals: 0±5V
Output scope of the pulsed signals: +5V,+12V
packing size : approx. 41x36x36cm"    GREENS    GBL-6A     47.898.000
7    Automotive Oscilloscope    1 unit/ruang praktik    "untuk mengetahui data dari suplai tenaga injector,dan tersaji dalam bentuk angka maupun grafik
Description
Input
Input coupling     AC,DC,Channel    2
Display mode   X-Y;Y-T,The input impedance   1MΩ 25pF
The maximum input voltage   40V(Probe X1);400V(Probe X1);2000V(Probe X100)
Probe attenuation   1X,10X,Attenuation setting   1X,10X,100X
Signal acquisition system,Sampling method  Real time sampling, random sampling
The storage depth    4K(2K per channel)
Acquisition mode   Sampling,peak detect
Vertical system, Vertical sensitivity  10mV-5V(Probe 1X)100mV-50V(Probe 10X) (1,2.5,5 Stepping)
The vertical accuracy   +/-3%
The vertical resolution   8bit,Bandwidth   20MHz
Horizontal system
 The real-time sampling rate     200 MSa/s  per channel
Horizontal scanning range  10nS/div-5S/div
Triggering system
 Mode  Automatic, normal and single
Type   The rising edge, falling edge
Automatic detection   Support(50Hz-40MHz)
Mathematical operation   CH1+CH2,CH1-CH2,CH2-CH1
Measurement system
Cursor measurement  Support time and voltage
Measuring method   Manual
Measurement     The peak to peak value and frequency"    JINHAN    JDS2022A     9.834.000
8    Automotive Engine Fault Diagnosis Simulator with auto fault    2 unit/ruang praktik    "untuk mempelajari cara kerja sistem engine management sistem pada engine bensin yang dilengkapi dengan metode troubleshooting sehingga memudahkan siswa utk mempelajarinya
Easy to check and diagnose all faults that can happen in an actual vehicle system
so that allows effective education concerning maintenance system.
Composition

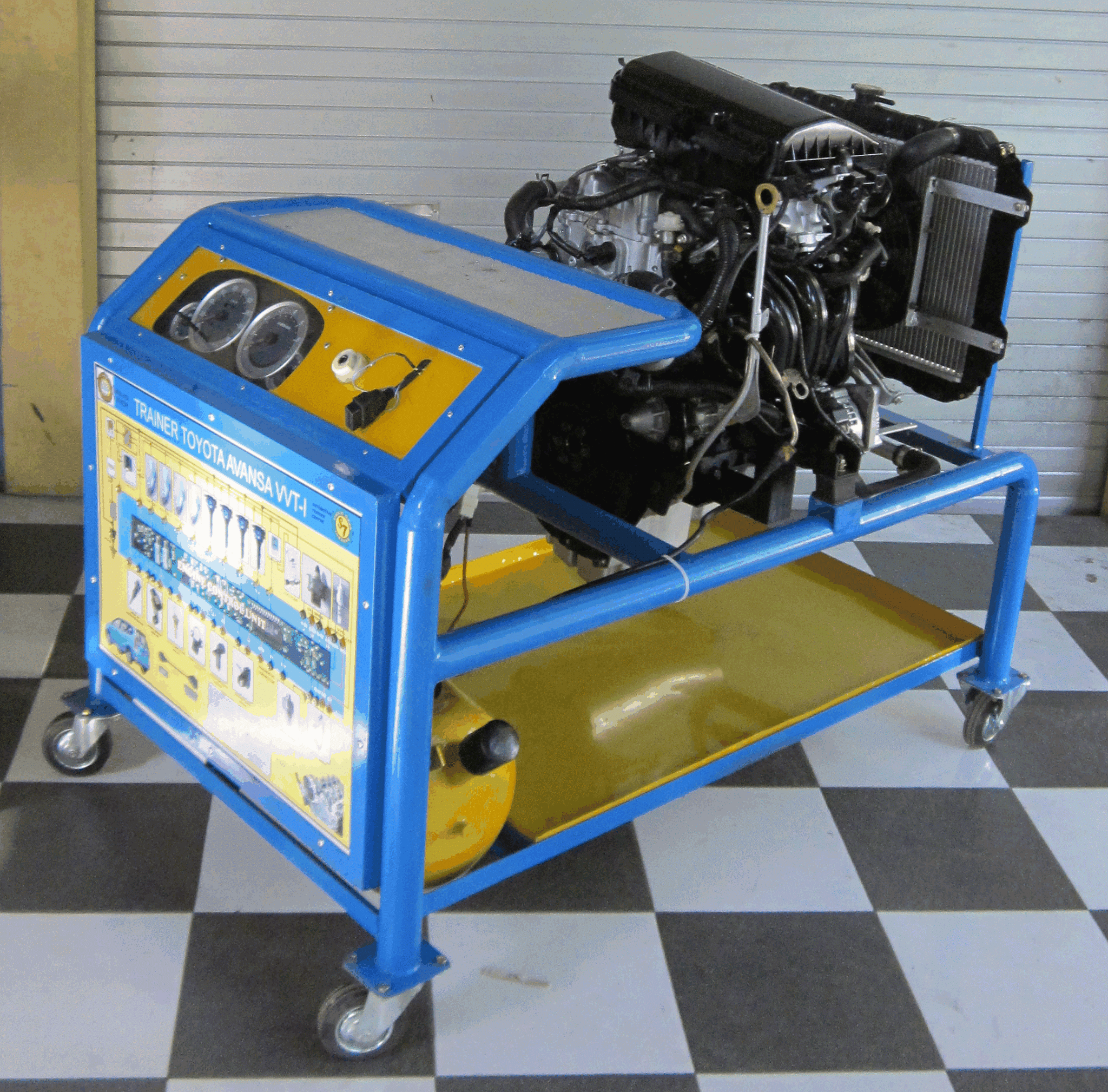

 1) Electrical Control Gasoline Engine Assembly, Auto Fault
 2) Automatic Transmission Assembly
 3) Electrical and electronic devices such as, ECM, TCM, AFS, CKP,CMP, O₂Sensor, WTS, Control Relay and etc
 4) Injector, Fuel Filter, Fuel Tank, Fuel Pump, Fuel Equipment, DC
  12V/60A Battery for Vehicles, Generator
 5) Ignition coil, Spark Plug, High Voltage Cables etc
 6) Cooling System such as Radiator, Overflow Tank, Relay, Electric Pan
 7) Exhaust System such as Catalytic Converter, Emission, Silencer
 8) Ignition Switch (Key S/W) Anti-vibration dampers and a urethanewheels
 9) Control box, fuel tank (removable), accelerator lever
 10) Stainless molding type safety guard is installed
 11) Radiator-only stand and laser processing protection panel
 12) Automatic transmission oil pressure gauge for each singular
x6 (1.5MPa x3, 2.5Mpa x4)
 13) Vacuum pressure gauge x1 (0.1Mpa)
 14) Fuel pressure gauge x1 (1Mpa)
 15) Battery voltage gauge x1 (30V)
 16) Drawer type storage space 1ea
Size : Approx. 1,500 X 1,400 X 1,300 mm
Weight : Approx. 400 kg
Training Contents
 Various practices by self-diagnosis.
Various practices by Electric-controlled gasoline engine tune-up.
Measurement and inspection of Auto transmission.
Measurement and inspection of Hydraulic measurement in
accordance with A/T Range.
Measurement of exhaust, Measurement and inspection of
compression pressure of cylinder.
Measurement of radiator cap pressure and inspection of the leakagefrom the radiator.
Operation test of Fuel pump, Measurement and inspection of Oil
   pressure.
Measurement and adjustment of tensions of timing chain and fan belt.
Measurement and adjustment of voltage and current in such as a
charging circuits, start circuits.
Connector checking terminal for inspection of sensors and actuator.
Inspection of every part of intake and exhaust system.

■ Inspection of every part of each automotive electricity, fuel system,

   ECU, sensors and actuator.

■ Inspection of belts in cooling system and pumps.

"    YES01    YESA-3102     508.135.500
9    Automotive Sensor Simulator    2 unit/ruang praktik    "Untuk mempelajari sensor-sensor secara khusus yang telah dikontrol oleh EMS,dilengkapi dengan instrumen pengukuran
Function of measuring and training operation voltage, resistance, pulse, AC wave form by multimeter, oscilloscope, diagnotor.Normal data and error data at each part of sensors can be compared.
All sensors used are same with those of an actual vehicle.
Specification
Composition : Crank angle sensor, A/T pulse generator sensor, cam position sensor, ABS wheel sensor, humidity sensor, AQS sensor, Engine temperature sensor, Automatic light sensor, knock sensor, speed sensor, Accelerator position sensor, oxygen sensor, throttle position sensor, air flower sensor, map sensor, safety sensor Size : Approx. 1,900 X 600 X 1,900 mm
Weight : Approx. 200 kg
Training Contents
Measuring the voltage changes in illumination Auto Light Sensor Practice.
Oil Temperature sensor practice according to temperature change.
knock sensor Practice with push-button.
photo sensor Practice according to the brightness of the light.
Practice intake air temperature sensor as a function of temperature.
ABS wheel speed sensor Practice according to wheel speed.
pulse generator A Practice according to the speed change by using the speed control dial and waveform measurements and Practice.
pulse generator B Practice according to the speed change by using the speed control dial and waveform measurements and Practice.
crankshaft position sensor and camshaft position sensor voltage waveform Practice by using The speed control dial.
oxygen sensor exercise by measuring the voltage according to the state.
coolant temperature sensor Practice by measuring the voltage and resistance  according to the temperature change.
AQS(toxic gas detection equipment) Practice in accordance with the hazardous  gas detection Practice.
throttle position sensor Practice by measuring the voltage according to the
 throttle position.
MAP sensor Practice by measuring the voltage in response to changes in
 (manifold absolute pressure sensor) pressure.

"    YES01    YESA-4331     508.135.500
10    Electrical Storage Oscilloscope    2 unit/ruang praktik    "untuk mengukur tegangan,gelombang ,grafik kerja dari sensor-sensor yang mendukung EMS
Channels 2
Bandwidth 25MHz
Sample Rate 250MS/s
Rise Time ≤14ns
Memory Depth 25kpts
Waveform Acquisition Rate   ≥2000wfms/s
Vertical Sensitivity 1mV/div~20V/div
Timebase Range 10ns/div~50s/div
Storage Setup,Wave,Bitmap
Trigger Modes Edge, Pluse, Video, Alternate
Interface USB OTG,Pass/Fail
General Characteristic
Power 100-240VAC, 40-440Hz
Display 7 Inches 64K Color TFT  LCD,  400×240
Product Color White and Gray
Product Net Weight 2.2 kg
Product Size (W×H×D) 306mm ×147mm × 122mm
Standard Accessories Probe×2 (1×,10× switchable),Power Cord, USB Cable, PC Software CD
Standard Individual Packing Gift Box, English Manual
"    UNI-T    UTD2025CL     10.468.500
11    CRDI Engine Injection Control System with auto fault    1 unit/ruang praktik    "untuk mempelajari cara kerja sistem injeksi bahan bakar diesel yang dikontrol oleh computer (ECU) beserta troubleshootingnya
Composition
 - CRDI Diesel engine injection - Includes all components used in the CRDI injection- Displays fuel delivery cycle from tank to tube (tester) and all sensors related diesel injection circuit - Configuration: operation key, voltage display, LED indicators for failure, a fuse box for all parts of fuel pumps, fuel tank, ECU, an injector, a fan, a crank gear, the cam gear and the tester for displaying the fuel injection - Measure voltage of resistance and all of the sensor (camshaft sensor and the crankshaft sensor, oxygen sensor, the air inlet sensor, a temperature sensor, a water temperature sensor) by using multimeter - All circuits for the electronic control ECU
 - Sensor measurements: temperature sensor, oxygen sensor, air flow sensor, air temperature sensor, an engine temperature sensor, exhaust gas sensor, crank sensor and a cam sensor
 - power supply : 220V- DC12V- LED Fault indicate sensor can be measured by multimete - Stand with wheel
Auto Fault Function
Cabinet Type storage space with 2 door
Size : Approx. 1,300 X 600 X 1,600 mm
Weight : Approx. 100 kg, key box
Training Contents
Measure the waveforms and check the changes according to RPM speed.
Engine operation : check the operation of the injector and sparks in the order of switch plugs (1, 3, 4, 2) and inspect whether normal operation of each sensor."    YES01    YESA-4241     416.785.500
12    Commonrail Diesel Test Bench    1 unit/ruang praktik    "untuk kalibrasi dan analisa injector diesel yang sudah dikontrol oleh komputer, dan mengkalibrasi sesuai dengan standar bawaan pabrik
1,Pump testing: pump delivery, pressure,PVC working status, leakage of itself,
2,Injector testing: leakage, injection oil quantity and back oil quantity(pre-injection,Idling, emissions, full load)
3,it can test pressure sensor,and DRV valve
4. Supports system: BOSCH,DELPHI,DENSO,SIEMENS
5. Testing data inside( pump and injector)
6. Electronic fuel delivery measuring,  automatic detection.
Technical parameters
1.Motor power: 7.5KW
2. Electronic power: 3 PHASE 380V or 1 PHASE 220V
3. Motor speed: 0-4000RPM
4. Presure adjustment: 0-2000bar
5. Flow testing range: 0-600ml/1000times
6.Flow measurement accuracy:0.1ml
7. Temperature range: 40+-2
8. Cooling system: fan or forced cooling"    KERNEL     CR3000-708A     416.500.500
13    Standar Mechanical Tool Set    5 unit/ruang praktik    "untuk membantu bongkar pasang engine,baik melepas baut maupun mengendurkan baut, dll
Contains :
with 7 drawer cabinet with specification :
BODY:Dimensions:(H)960x(W)670x(D)460mm.
DRAWERS:Inside dimensions:
5 drawers (H)75x(W)576x(D)380mm, max loading capacity:25KG.2 drawers (H)154x(W)576x(D)380mm
Max loading capacity: 30KG.100% ball bearing guide rails.
Patent design for locking system.
consist of :Drawer 1 contains :
socket : 8,10,11,12,13,14,16,17,18,19,20,21,22,23,24,27,30,32 mm,flex handle 15 inc
extension bar 5inc and 10inc,universal joint,bent handle ratchet
sliding t-bar 10 inc,adaptor 1/2x3/8M, 1/2x1/4M,sparkplug socket 16mm,21mm
ball head hexkey -extralong type : 1.5,2,2.5,3,4,5,6,7,8,10
central holed torx key set -fully polished & satin plated : 1.5,2,2.5,3,4,5,6,7,8,10
screwdriver twistop : (-) 1.2x6-150L, (+) PH2-150
71 pcs bit socket set
Drawer 2 contains :combination wrench 6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,27,32mm
double size flexible socket wrench (mm) : 8x10, 10x12, 12x14, 14x17, 17x19
1/2inc drive E-socket : E10,E12, E14,E16,E18, E20
Drawer 3 contains :
combination plier 8inc,diagonal cutting plier 8inc,slip-joint jaw plier 8inc
long nose plier 8inc,water pump plier 10inc,ball peen hammer with wooden shaft
5pcs chisel & punch set,adjustable wrench,curved jaw locking plier 10inc
"    SPERO    32-96-165     25.713.000
14    ABS Simulator with Fault Diagnosis with 4 axis    2 unit/ruang praktik    "untuk mempelajari sistem kerja rem ABS lengkap dengan sirkuitnya,tekanan hidrolisnya, dan dapat melakukan trouble shooting
Feature
This equipment is effective to understand and educate A.B.S system and for
 maintenance, inspection training.
 Vehicle-specific wiring, parts are used.
Comparing between the electric data and physical data on the panel.
The rear panel is effective to understand the circuit diagram and pneumatic lines of the A.B.S. system at a glance.
Able to measure the pressure and voltage when loading/unloading with a load panel.
Able to observe reaction condition and changes according to speed by a motor, a inverter.
Specification
Size : Approx. 1,200 X 2,000 X 1,600 mm,driven by reduction motor single phase 220V,Weight : Approx. 300 kg
Training Contents
Various element by self-diagnosis.
Removing the air from the brake.
Replacing brake oil.
Replacing pad.
Hydraulic system Inspection.
ABS circuit verification.
Able to demonstrate the failure test. (arbitrarily)"    YES01    YESA-4920     828.495.000
15    Automotive Basic Electric Circuit Trainer    4 unit/ruang praktik    "mempelajari prinsip dasar kelistrikan otomotif
Feature
An practice unit through which students can practice the principles
of basic composition circuit of relay and power distribution of ignition
switch with education purpose of basic electric and electronic system.
Able to teach each components and connection lead so that it can
be suitable for a test, inspection training. Specification
Specification
Composition : Maximum voltage : 30A, Working voltage : DV12V,
Relay capacity : 30A, Lamp : 1.4W, 55W, Main fuse : 30A, Relay
fuse : 10A, 1.0SQ Jump wire : 24 set/Red 6 set/Blue 6set/Black 6
set/Yellow 6 set
Size : Approx. 300 X 200 X 150 mm, Weight : Approx. 10 kg
Training Contents
Automobile relay operation practice.
Understanding of Ignition switch composition and power distribution.
Practice of building system circuit."    YES01    YESA-4460     28.548.000
16    Basic Lighting Electrical Circuit System Trainer    4 unit/ruang praktik    "mempelajari dasar kelistrikan lampu kendaraan
Feature
A unit through which students are able to learn theory and operation functions of headlight, taillight, direction light systematically and effectively.
Testing and diagnosis educations are easy because wiring and connections of all sensors and parts are installed as lead socket.
Parts composing each circuit system are same with those of an actual car.
Able to check and inspect all faults which can be cause in an actual car.
Specification
Composition : Taillight, Fog Lights, Direction Light, Horn, Wiper
Size : Approx. 600 X 150 X 400 mm
Weight : Approx. 30 kg
Training Contents
Accomplishing the circuit and test training."    YES01    YESA-4410     129.412.500
17    Automotive Components Electric Circuit Training Equipment    2 unit/ruang praktik    "mempelajari secara keselurahan kelistrikan bodi kendaraan secara detail
Feature
Components are arranged in same locations with an actual vehicle so that operation of parts can be done for effective education.
Easy to check and diagnose all faults that can happen in an actual vehicle system so that it's able to do effective education concerning
maintenance system.
Able to practice fault tests (can make failure condition on purpose)
Unique wiring of vehicle used. For education, wiring is manufactured in order for us to see it straight.
Checking pins for measuring waveforms are installed at each sensor for wiring protection.
Sparkling at spark plug can be observed with naked eye and safety cover is equipped.
Able to observe the fuel injection with the naked eye and LED light works during injector operation.
Specification
Composition
 1) Switch board : Approx. over 2,500 X 800 X 1,700 mm
 2) Attached circuit : Ignition circuit, charging circuit, circuit of indicating direction and emergency light, horn circuit, door lock circuit, head light circuit,
washer circuit, wiper circuit, starting circuit, fuel circuit, sidelight circuit, antenna circuit, audio system circuit, various sensors and switch, ECU, key box,
combination switch, relay box, battery, combination switch relay, fuse box and fuel tank
 3) Distributor and wipers operate normally by motor and spark at plug can be checked with naked eye
 4) Steering handle, surge tank, throttle body, injector and AFS light attached
 5) Battery and charger
 6) Charging Device : with extra Charger or 2HP motor operation
 7) 1,500cc Engine Type
Training Contents
Various practices by self-diagnosis.
Waveform measurement of each sensor."    YES01    YESA-4100     482.760.000
18    Interactive Automotive Electronic Learning with Universal Engineering Platform    1 unit/ruang praktik    "untuk mempelajari modul modul kelistrikan yang terdapat pada kendaraan,lengkap sesuai dengan modul kelistrikan yang diinginkan
Technical Data
Power supply DC output : +/- 0~20V 2A, ±5V 1A,±15V 1A
 AC output 240V 0.5A, 12V 0.5A
Digital Multimeter AC/DC Voltage : 1mV~400V
 DC Current 1mA~4A Resistance 0~4 MΩ
Function Generator 1Hz ~ 100Khz (Max 20Vp-p)
 sinewave,trianglewave,squarewave,sawtoothwave
Realtime control OS : windows 10/ Android Lollipop 5.1.1
Laboratory CPU : Intel Atom Bay Trail-TZ3735F/Quadcore/1.33Ghz
 RAM : DDR 2GB , In memory 32GB
 Out Memory Maximum 128GB support
 LCD : 10"" IPS Screen ,Resolution 1280x800
 Touch pannel : 10 point capacitive multi-touch screen
 Size 257x172x10mm ,Input Power Bandwith 25MHz
Inner Oscilloscope Channels 2
(Option) Vertical Resolution 8 bits
 Bandwitdth 25MHz , Input ranges +50mV~+20V
 Overvoltage protection +100V , Memory 16Kb
 Maximum sample rate 200ms , Trigger modes : none,auto,repeat,single
 Automatic measurements : scope mode,statistics
 Spectrum mode : frequency at peak,amplitude at peak THD db,SNR-SINAD,SFDR
 totalpower,average amplitude at peak
 Mask limit testing : mask generation (numeric or graphical)
 SDK/API : 32 and 64 bit drives for windows 7,8 and 10 Linux drivers, mac OS X drivers
Including training module :
AUTO ELECTRICS
Topic covered included : Battery & Fuse experiment
 Starter & solenoid experiment
 Horn & relay experiment
 Light circuit experiment
 Brake & reversing light
 Fault find-out experiment
IGNITON SYSTEMS
Topic covered included : Electrical ignition circuit experiment
 Timing adjustment experiment
 Electrical ignition circuit experiment
 Alternating current experiment
 Voltage commutation experiment
 Synchronous generators experiments
 Single phase,three phase etc.
 Voltage regulation & battery charge
 Find-out circuit fault
ENGINE CONTROL
Topic covered included : Crankshaft position sensor experiment
 Entrance Air Temperature sensor & thermic rays air inductive experiment
 Potensial meter on TPS experiment
 Coolant temperature sensor & knocking sensor experiment
 Oxygen Sensor & ignition coil experiment
 Fuel pump,injector& idle air valve experiment
VEHICLE DISPLAY
Topic covered included : Car speed & engine speed measuring device experiment
 Direction indicating warning light & seat
 Belt warning light experiment
 Fuel level & oil pressure experiment
 Water temperature exercise&brake warning light experiment
 Lamp monitoring & brake experiment
HYBRID VEHICLE
Topic covered included : Automobile energy flowchart by operational checking experiment
 Experiment for change of state in accordance with battery voltage & temperature
 High voltage battery & supplementary battery charging experiment
 Experiment for change of state in accordance with motor controller
 Automatic stop mode experiment
 Hill start assist system experiment
 Eco-mode experiment
 Regeneration brake system experiment
 HEV ,engine starter motor conditions and experiment
 Soft & hard hybrid type experiment
 Fault find-out experiment
ELECTRIC VEHICLE
Topic covered included : Automobile energy flowchart by operational checking experiment
 Experiment for change of state in accordance with battery voltage & temperature
 High voltage battery & supplementary battery charging experiment
 Experiment for change of state in accordance with motor controller
 Automatic stop mode experiment
 Hill start assist system experiment
 Eco-mode experiment
 Regeneration brake system experiment
 HEV ,engine starter motor conditions and experiment
 Soft & hard hybrid type experiment
 Fault find-out experiment "    YES01    YESA-7000     501.411.000
19    Digital Multimeter    6 unit/ruang praktik    "mengukur voltage,arus,hambatan rangkaian elektrik kendaraan
DC Voltage (V) 400mV/4V/40V/250V ±(0.8%+1)
AC Voltage (V) 4V/40V/250V ±(1.2%+3)
DC Current (A) 400μA/4000μA/40mA/400mA/4A/10A ±(1%+2)
AC Current (A) 400μA/4000μA/40mA/400mA/4A/10A ±(1.5%+5)
Resistance (Ω) 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1%+2)
Features
Display Count   4000
Auto Range yes
Diode  yes
Transistor  yes
Continuity Buzzer yes
Low Battery Indication yes
Input Impedance for DCV Around 10MΩ √
General Characteristics
Power 1.5V Batteries (R03)×2
LCD Size 48mm×16mm
Product Color Red and grey
Product Net Weight approx. 179g (Including Holster)
Product Size approx. 130mm×73.5mm×35mm
Standard Accessories Batteries, Test Lead, Holster"    UNI-T    UT-33A     634.500
20    DC Power Supply    2 unit/ruang praktik    "untuk memberikan input daya, pada saat pengetesan kelistrikan bodi kendaraan yang membutuhkan power DC setara dengan aki mobil
Output Voltage0~32V
Output Current0~5A
Load Regulation
Voltage≤0.01%+3mV
Current≤0.2%+3mA
Power Regulation
Voltage≤0.01%+3mV
Current≤0.1%+3mA
Noise
Voltage≤1mVrms
Current≤3mArms
Display Accuracy≤±1%rdg+2digits
Working Temperature0℃~ 40℃
Constancy (MTBF)≥2000h
General Characteristics
Power Supply Input voltage:115VAC/230VA;Frequency:47Hz/63Hz
Product ColorWhite+Grey
Product WeightAbout approx.5.6kg
Product Size (W×H×D)approx. 145mm × 174.7mm × 283.5mm
Standard Accessoriespower cord, probe"    UNI-T    UTP-1305     9.834.000
21    Motor Starter & Alternator Test Bench    1 unit/ruang praktik    "untuk mendiagnosa kekuatan motor starter,mengetahui voltage dan arus yang diterima maupun yang dikeluarkan oleh motor starter
Feature
An practice unit through which students can practice the principles of
basic composition circuit of relay and power distribution of ignition switch
with education purpose of basic electric and electronic system.
All components are from an actual vehicle.
Able to attach/detach the module and test.
The voltage and current gauge allow student to observe the difference
between ON and OFF.
Specification
Composition
1) Voltage meter : 50V (digital type)
2) Current meter : 500A (digital type)
3) Stand : 1ea, Tester cable clip, Operation lamp, Switch, Generator motor
Size : Approx. 700 X 700 X 1,200 mm
 Weight : Approx. 100 kg
Training Contents
when the generator is on/off, measure the V,I.
Test for generator, start motor failure, diagnosis test.
Attach/detach training."    YES01    YESA-4501     229.009.500
22    Combination Starter & Alternator Training System    4 unit/ruang praktik    "untuk mempelajari korelasi kerja antara motor starter dengan alternator lengkap dengan sirkuitnya
Feature
An Educational unit manufactured to understand automotive
component’s electric circuit by modularization of generator’s electronic
circuit,Able to check the role and output power of the generator
Understand the principle of electricity production and diagnose, check
electric capacity,Directly link to electronic connection
Specification
Composition : Main body stand, 2 second phase of resistive heater,
2 sets of lighting system, 2 sets of resistance-modulating lighting
system, power supplier, inverter for controlling speed of volt meter ampere motor, generator, etc.Motor : three phases 380V, 3HP motor
- Equipment of transparent polycarbonate in motor drive parts,stand aluminum profile,Size : Approx. 1200 X 800 X 1700mm,Weight : Approx. 100kg
Training Contents : Electric capacity Test of generator with resistance.
Measurement of electrical loading by speed of generator.
Identification of electric capacity and loading with V,A meta of generator."    YES01    YESA-4512     116.725.500
23    Heavy Duty Battery Charger    1 unit/ruang praktik    "untuk mengisi kembali tenaga aki yang sudah lemah dan membantu memperkuat daya aki saat mengalami kesulitan dalam menstarter mobil
INPUT VOLTAGE 1PH220V/380V
FREQUENCY 50/60Hz
INPUT POWER 4.5/40KVA
STARTING VOLTAGE 12/24V
STARTING CURRENT 1800A
CHARGING VOLTAGE 10-15/20-30V
CHARGING CURRENT 100A
DIMENSIONS(LxWxH)approx.  350x340x820mm
WEIGHT approx. 42KG
Accessories included:
BATTERY CLAMP 2PCS
CASTOR 2PCS
CASTOR AXLE 1PC
COTTER PIN 2PCS
OUTPUT CABLE 2PCS
HOST 1PC
INSTRUCTIONS 1PC
WARRANTY CARD 1PC"    SHUGUANG    1800     15.859.500
24    DIS Ignition System Trainer    2 unit/ruang praktik    "untuk mempelajari cara kerja sistem pengapian elektrik dengan model distributor elektronik
Feature
Understanding DIS type of ignition’s electrical circuit diagram.
The waveform can be measured by adjusting the speed arbitrarily.
It allows to see the spark plug procedure directly.
Specification
Composition : DIS Ignition coil 4, Crank Sensor, Spark Plug, Speed
adjustable controller, 40W small motor
Size : Approx. 600 X 200 X 300 mm
Weight : Approx. 20 kg"    YES01    YESA-4233     105.942.000
25    Automotive Ignition Circuit Control System Trainer with Various Sensor    1 unit/ruang praktik    "untuk mempelajari sistem kerja pengapian elektronik dan pengaruhnya terhadap sensor-sensor pada kendaraan,dan membandingkannya secara bersamaan dengan pengapian jenis konvensional ,maupun pengapian elektronik lainnya yang menggunakan 2 coil (DLI) maupun 4 coil (DIS)
Compares the histories of 4 kinds of ignition systems to those of intake system, being practice training mode has educational function.
Connection sockets are installed for each sensors, circuits and components so that it is able to help wiring practices and measure wave patterns.
By manipulating the controller, able to check the waveforms in accordance with RPM speed.the panel composing the ignition circuit is made with aluminum CNC-treated panel.
1) Carburetor Point ignition circuit system
 - Spark plug, Power distributor of point system, Variable motor
 for the distributor, Diagnosis jack, Key box, Function-selection switch
 - Ignition device pin point, Injector device, Carburetor
2) Suction type MPI, Kalman swirl system
 - Power distributor type, Kalman swirl system, Optical type
 - DLI Type, Kalman swirl system, Optical type
 - 2 in 1 set. Ignition system as 2 arrays
 - ECU, AFS, TPS, BPS, MPS, WTS, O2, ISC, ATS, Injector, Sparkplug, Power transistor, Power distributor, Variable motor for the distributor, AFS suction motor, Diagnosis jack, Control relay
3) Intake system MPI AFS
 - DLI -2coil, magnetic type- DLI -2coil, magnetic Type - DIS -4coil, magnetic Type
 - 2 in 1 set. Ignition system as 2 arrays- ECU, AFS, TPS, WTS, ISC, ATS, Injector, Spark plug, AFS intake motor, Diagnosis jack, Control relay
4) Intake system map sensor
 - DLI -2coil, hall sensor type
 - DIS -4coil, hall sensor type

 - 2 in 1 set. ignition system as 2 arrays

 - ECU, AFS, TPS, WTS, ISC, ATS, Injector, Spark plug, AFS

 suction motor, Diagnosis jack, Control relay, Key box

5) 4 Cabinet type storage space with 2 door

■ Size : Approx. 1,800 X 600 X 1,800 mm

■ Weight : Approx. 200 kg




Training Contents

■ Measure the waveforms and check the changes according to RPM speed.

■ Engine operation : check the operation of the injector and sparks in the order

of switch plugs (1, 3, 4, 2) and inspect whether normal operation of each sensor.

■ Failure code : the device allows to inspect failures on purpose.

■ Sensor inspection : It is able to check failure by using variable simulation.

(Variable RPM : 0 - 3000RPM)"    YES01    YESA-4231     264.535.500
26    Motronic System Simulator    2 unit/ruang praktik    "untuk mempelajari sistem pengapian elektronik dengan tipe motronik
Specification
Composition : Crank sensors, injectors, spark plugs, fan, relay, RPM meter,
self- diagnosis jack, emergency switches, fuses, Key switch, ATS, TPS,WTS, MAP, HO2S
Case Type
Size : Approx. 400 X 200 X 400 mm
Weight : Approx. 25 kg
Training Contents
Measure the waveforms and check the changes according to RPM speed.
Engine operation : check the operation of the injector and sparks in the
order of switch plugs (1, 3, 4, 2) and inspect whether normal operation of each sensor.
Failure code : the device allows to inspect failures on purpose.
Sensor inspection : can check failure by using variable simulation. (Variable RPM : 0 - 3,000RPM)"    YES01    YESA-4251     315.285.000
27    Immobilizer Ignition Control Simulator    2 unit/ruang praktik    "untuk mempelajari sistem kerja immobilizer dan trouble shootingnya
An effective educational unit that allow students to understand structure ofignition system devices and operation principles.
Parts of ignition system are set on a panel with power and wiring terminal,being able to be seen the overall system at a glance.
By manipulating the controller, able to check the waveforms and changesin accordance with RPM speed.
Students are able to understand flow of entire circuit, find out what causesfault and how to repair.
The panel composing the ignition circuit is made with aluminum CNCtreatedpanel.
Composition : Crank sensors, injectors, spark plugs, fan, relay, RPM meter,self- diagnosis jack, emergency switches, fuses, Key switch, ATS, TPS,WTS, MAP, HO2S
 Size : Approx. 400 X 200 X 400 mm
Weight : Approx. 25 kg
Training Contents
Measure the waveforms and check the changes according to RPM speed.
Engine operation : check the operation of the injector and sparks in the order of switch plugs (1, 3, 4, 2) and inspect whether normal operation of each sensor.
Failure code : the device allows to inspect failures on purpose.
Sensor inspection : can check failure by using variable simulation. (Variable RPM : 0 – 3,000RPM)"    YES01    YESA-4260     396.484.500
28    Instrument Control Panel System Trainer    2 unit/ruang praktik    "untuk mempelajari instrument panel kendaraan sebagai kontrol utama dalam sistem penerangan
Feature
Modulized electric circuit device of Instrument Panel Circuit so that understand
the circuits by electric wiring and measuring practices.
esting and diagnosis educations are easy because wiring and connections of
all sensors and parts are installed as lead socket.
 Able to check and inspect all faults which can be cause in an actual car.
Specification
Composition : Control panel, multi function S/W, Key box, lamps
Size : Approx. 600 X 150 X 400 mm
Weight : Approx. 30 kg
Training Contents
Accomplishing the circuit and test training.
Measuring the waveform in each equipment."    YES01    YESA-4420     126.876.000
29    Automotive Air Conditioning System Simulator    1 unit/ruang praktik    "untuk mempelajari secara menyeluruh sistem A/C pada kendaraan dilengkapi dengan wiring diagrammnya,dan penunjuk tekanan untuk masing masing saluran A/C
Feature
The simulator is able to train and exercise about automobile
air conditioning system, and understand how it works and faults, inspection.
Easy to demonstrate the training session in refrigerant cycle, heating,
air conditioning, temperatures and pressures.
It is the purpose to understand and diagnosis of air conditioning system
from faults in real vehicle effectively.
Charging system attached.
Compressor: 5HP motor, inverter RPM control type.
HFC-134a.
Specification
Composition : Compressor, condenser, dryer, expansion valve,
the orifice tube, the evaporator,Blowers, piping, cooling fans, the unit,
the control panel, Motor with speed control, pressure (high-1, low-3),
7 temperature gauge, etc
10 Fault insertion available
3 PCB board available to safety protection
PCB Board is connect PC with USB or RS 232
Size : Approx. 1,200 X 2,000 X 1,600 mm
Weight : Approx. 300 kg
Training Contents
Charging the refrigerant and recovery.
Air vent.
Session for FATC principles and theories, maintenance, inspection."    YES01    YESA-4600     615.345.000
30    Automotive Advanced ECS/ABS/VDC Control System Simulator    1 unit/ruang praktik    "untuk mempelajari cara kerja dan fitur keamanan dari suspensi elektronik,stabilitas dinamis,serta pengereman elektronik dari kendaraan
The simulator is able to train and exercise about VDC, ECS, ABS. It is the purpose to understanding and diagnosis from faults in real vehicle
effectively.
The seat is attached to allow students to operate.
Comparing and analyzing electric signals and physical outputs by displaying on panel which are difficult to observe with eyes. (pressure, solenoid
operation lamp, step motor display)
Composition : ECU, rear absorber, G sensor, ECS mode switch, ECS warning, throttle position sensor, speed sensor, steering wheel sensors,
instrument cluster, rear solenoid valve ASSY, the front solenoid valve ASSY, front parking sensors, rear parking sensors, compressor, solenoid
power relays, front air tank, rear air tank, power relays, the return pump relay
Size : Approx. 2,000 X 2,000 X 1,800 mm
Weight : Approx. 400 kg
Training Contents
Various elementsby self-diagnosis.
Product operation.
ANTI ROLL control ROLLING protection.ANTI DIVE should be in parallel.
ANTI SQUAT control and ANTI DIVE control should work conversely.
Control PITCHING & BOUNCING Shockabsorberdepending on the
new construction situations.
automatically selected by AUTO-running state. (super soft, soft,medium, hard)
automatically selected by the SPORT running condition. (medium,hard)
When accelerating control to LOW garage.
During decelerationcontrol to NORMAL garage.
Head lamp OFF : front = LOW, rear = NORMAL.Head lamps ON : front = LOW, rear = LOW.
While operating below 40km/h garage is converted to HIGH.
Operating the Switch. While operating above10km/h,it is converted
to AUTOMODE."    YES01    YESA-4902     1.525.038.000

Untuk pemesanan atau informasi silahkan hubungi alamat kontak kami :
CV.ASAKA PRIMA | DUTA MEDIA GROUP.
PERCETAKAN & DISTRIBUTOR ALAT LAB & PERAGA PENDIDIKAN.
Jl.Maulana Hasanudin No.52 Cipondoh - Kota Tangerang
Cabang : Ruko Pondok Permata No.1, Jl. Raya Tanggul, Rajeg Mulya, Rajeg, Tangerang, Banten 15540
021 5570 1397
021 5570 2265
0813.1019.7873
WA.0812.1236.8589
WA.0877.7432.4146
0813.8053.7399
www.asakaprima.net
asakaprima@gmail.com
